Localization & Positioning (Single and Multi Hop Schemes)

SINGLE HOP SCHEME

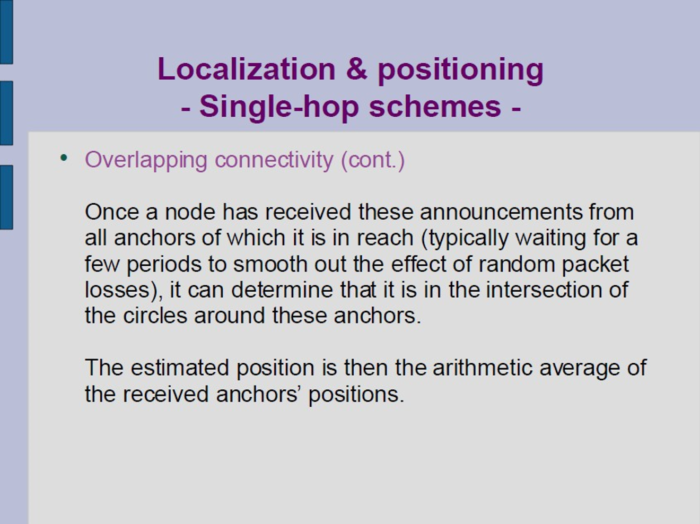

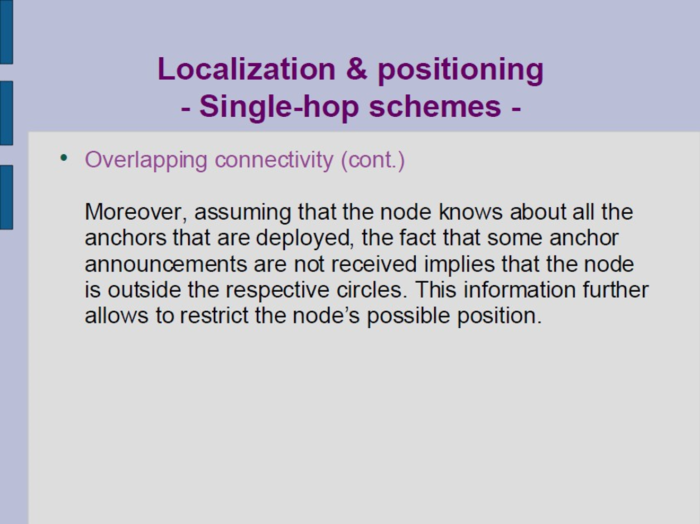

Overlapping connectivity

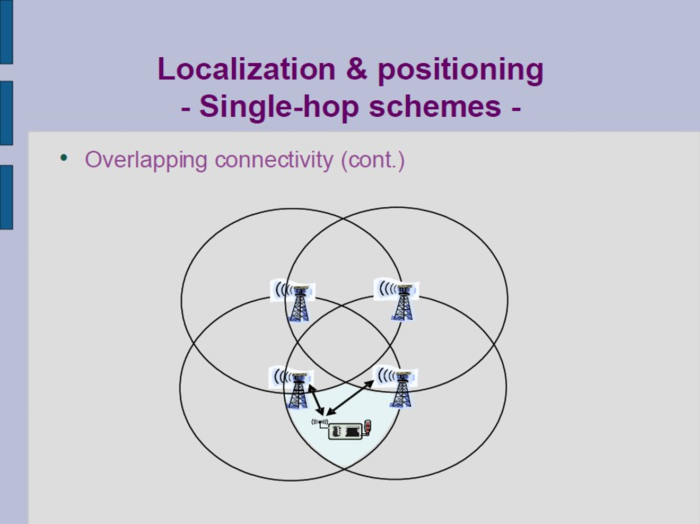

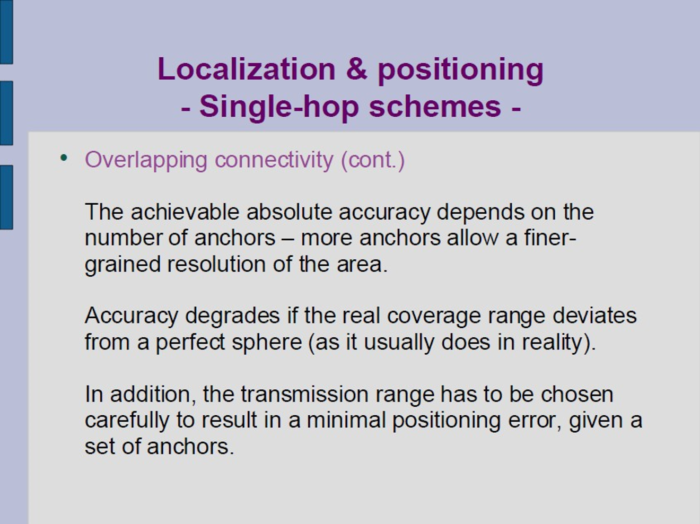

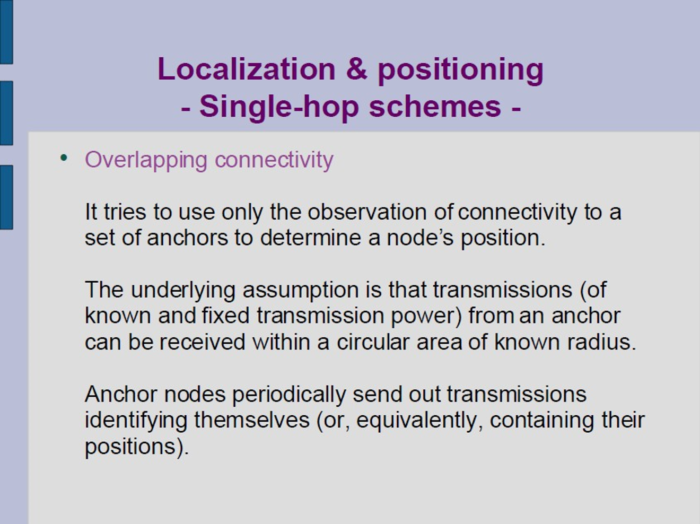

overlapping-connectivity-1 overlapping-connectivity-2 overlapping-connectivity-3 overlapping-connectivity-4 overlapping-connectivity-5

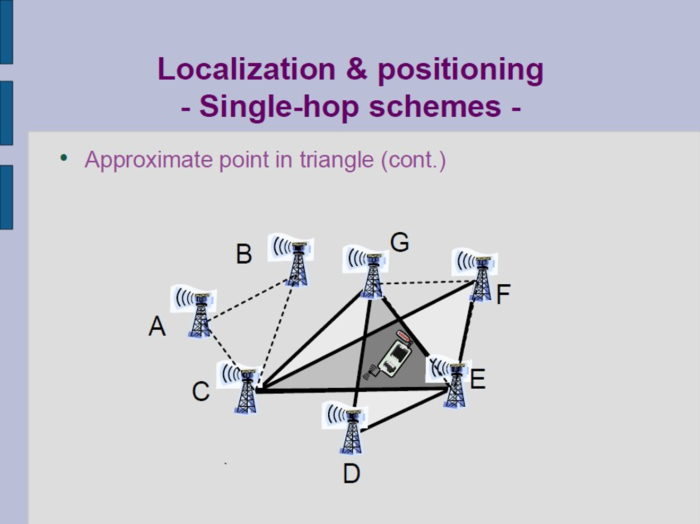

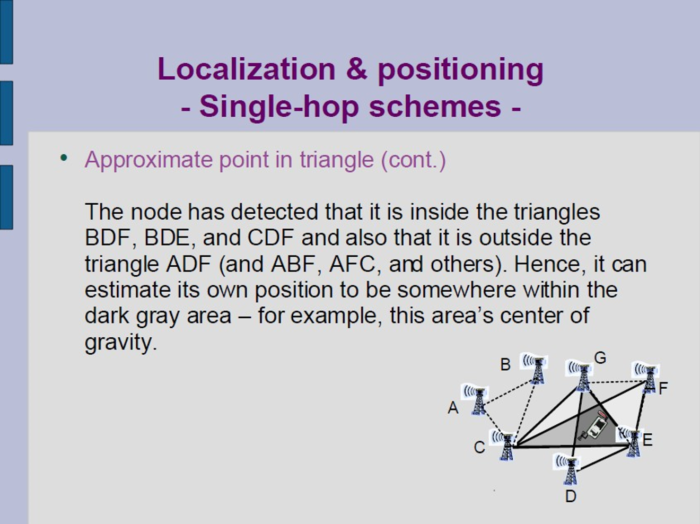

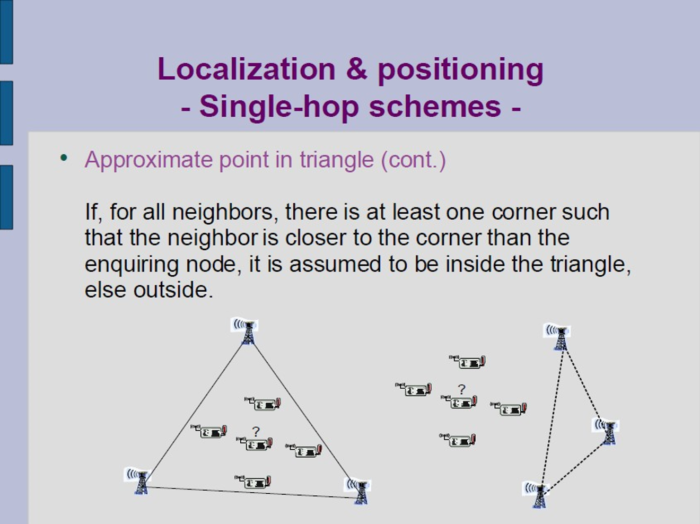

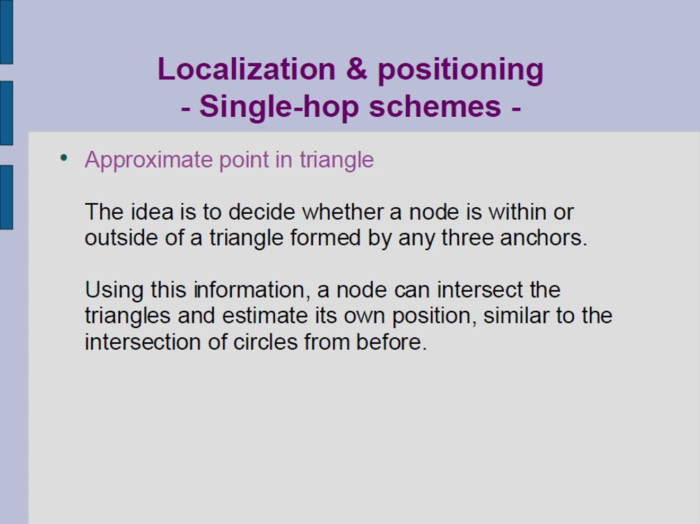

Approximate Point in Triangle

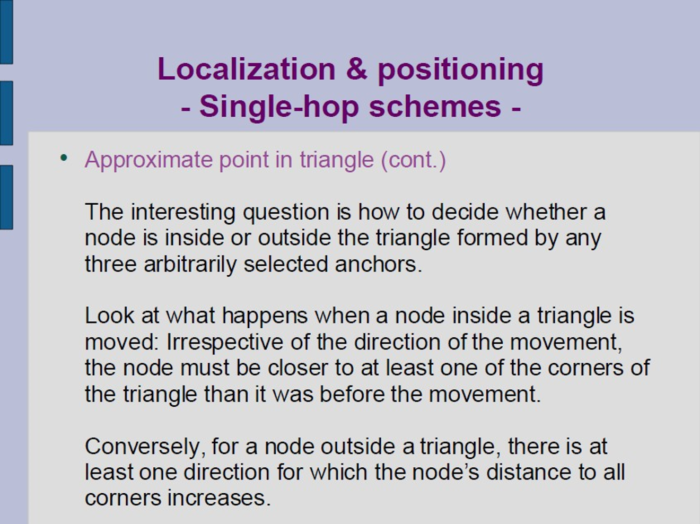

approximate-point-triangle-1 approximate-point-triangle-2 approximate-point-triangle-3 approximate-point-triangle-4 approximate-point-triangle-5 approximate-point-triangle-6

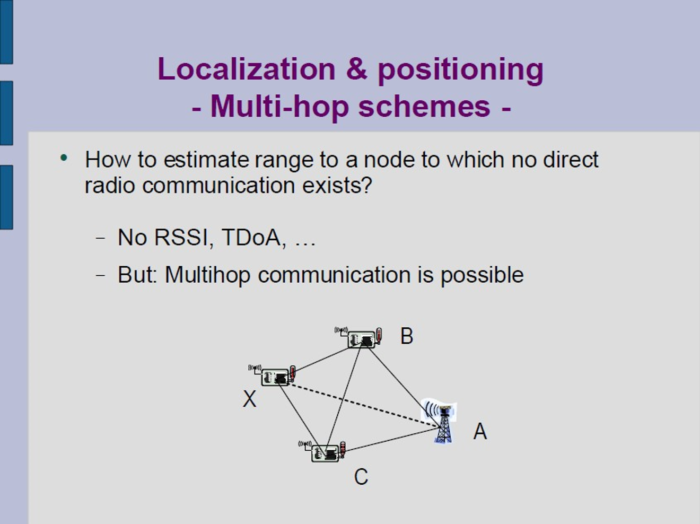

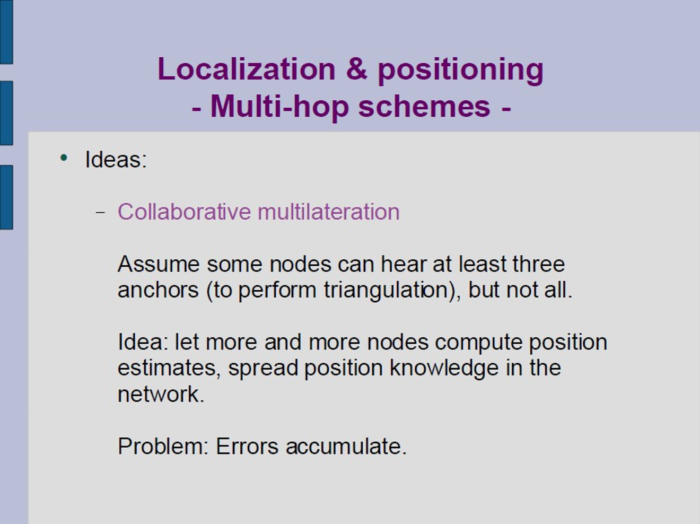

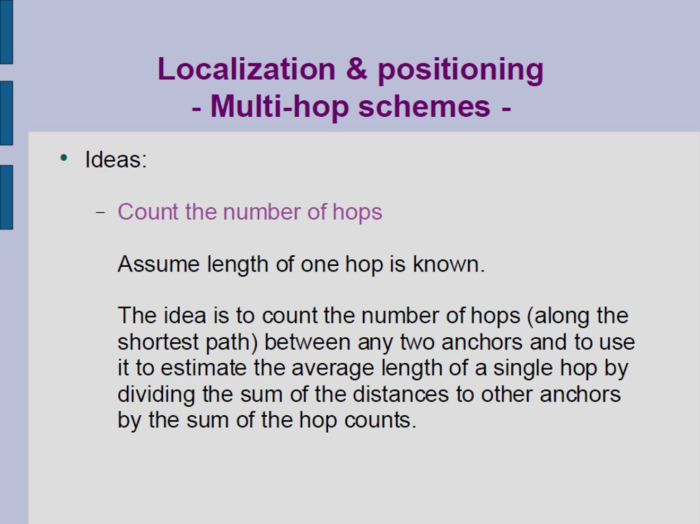

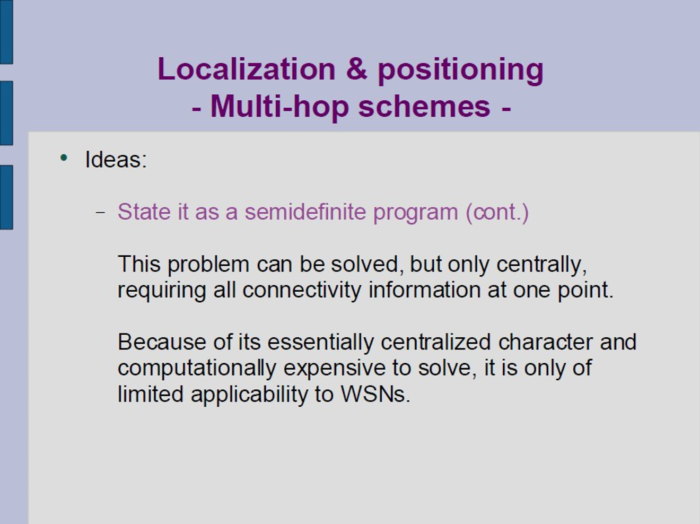

MULTI HOP SCHEME

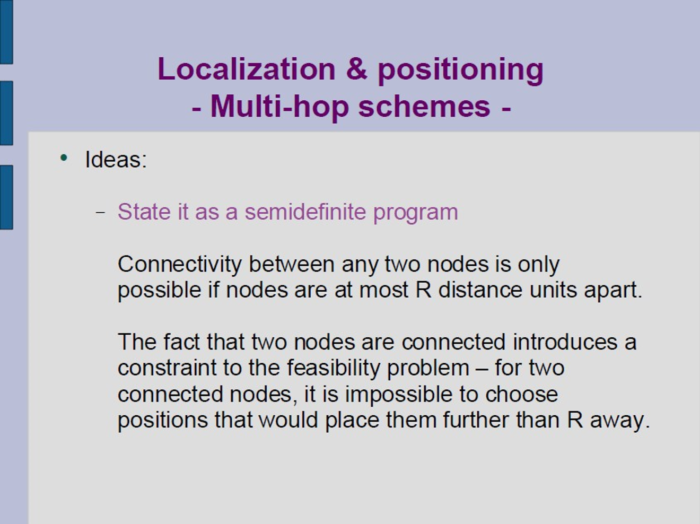

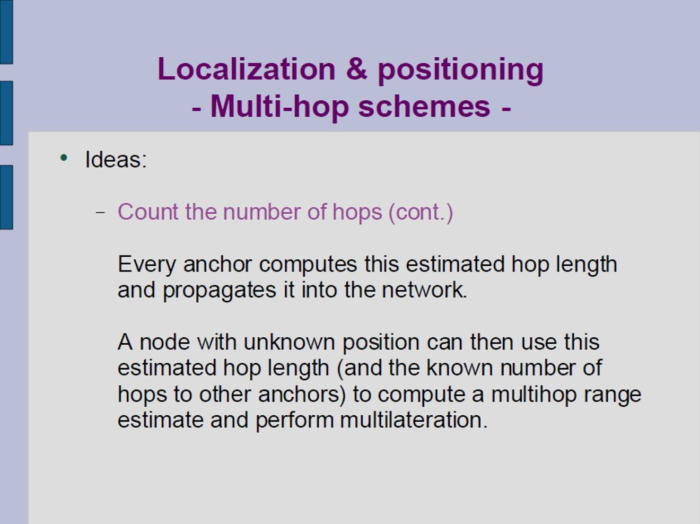

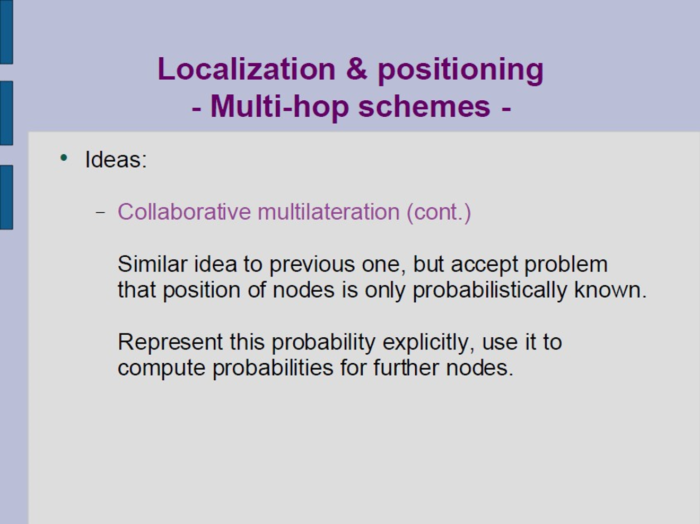

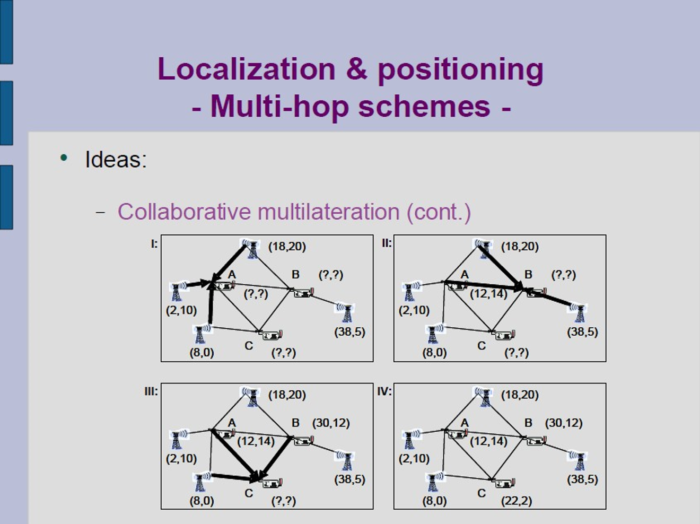

multi-hop-1 multi-hop-2 multi-hop-3 multi-hop-4 multi-hop-5 multi-hop-6 multi-hop-7 multi-hop-8 multi-hop-9 multi-hop-10
