Buffer

buffer-header

September 18, 2016
Published By : Pratik Kataria
Categorised in:

Buffer cache

  • When a process wants to access data from a file, the kernel brings the data into main memory, alters it and then request to save in the file system
  • Example: copy cp one.c two.c
  • To increase the response time and throughput, the kernel minimizes the frequency of disk access by keeping a pool of internal data buffer called buffer cache.
  • Buffer cache contains the data in recently used disk blocks
  • When reading data from disk, the kernel attempts to read from buffer cache.
  • If data is already in the buffer cache, the kernel does not need to read from disk
  • If data is not in the buffer cache, the kernel reads the data from disk and cache it

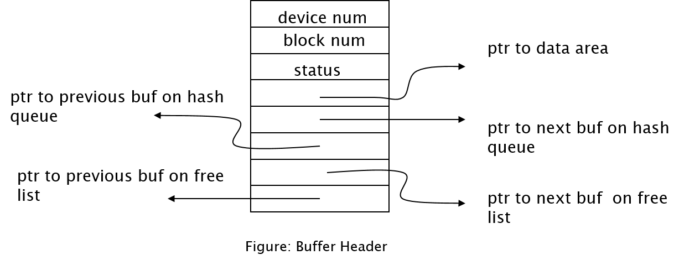

Buffer header

buffer-header

  • A buffer consists of two parts:
    • A memory array
    • Buffer header
  • Device num
    • Logical file system number
  • Block num
    • Block number of the data on disk
  • Status
    • Buffer is currently locked
    • Buffer contains valid data
    • Delayed-write
    • Kernel is reading/writing from/to disk
    • A process is currently waiting for the buffer to become free.
    • Kernel identifies the buffer content by examining device num and block num.

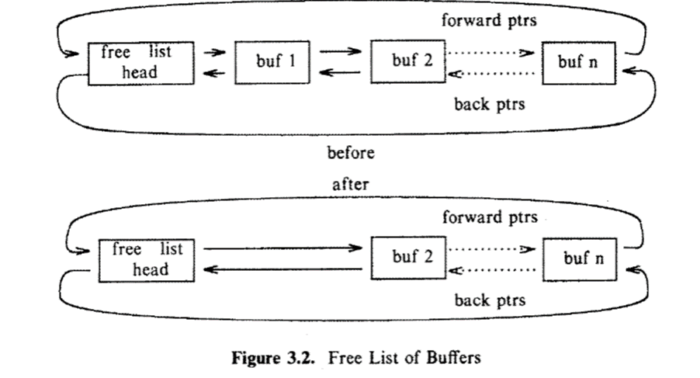

buffer-data-structure

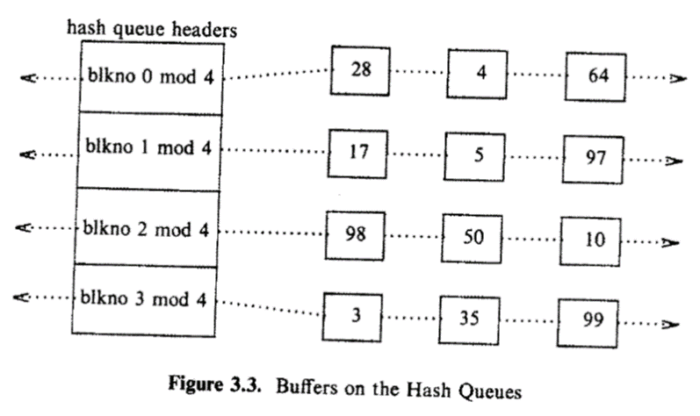

buffer-data-structure1
